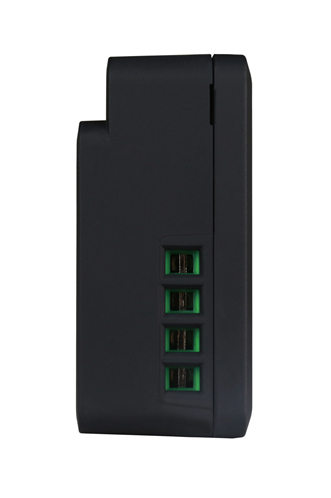

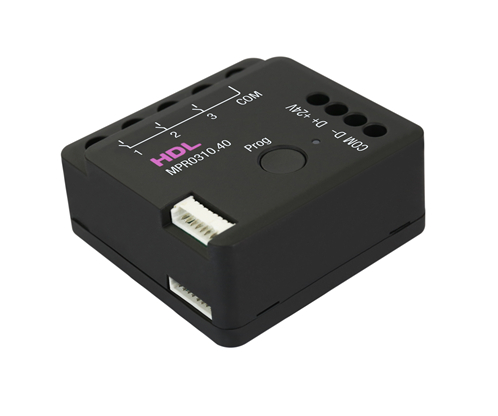

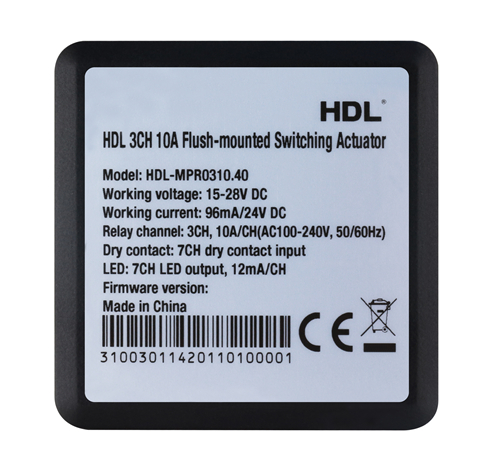

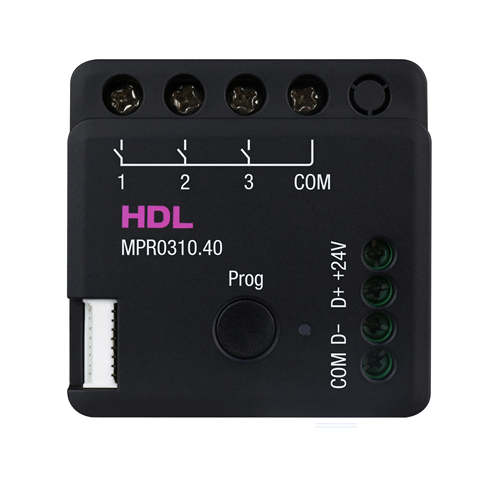

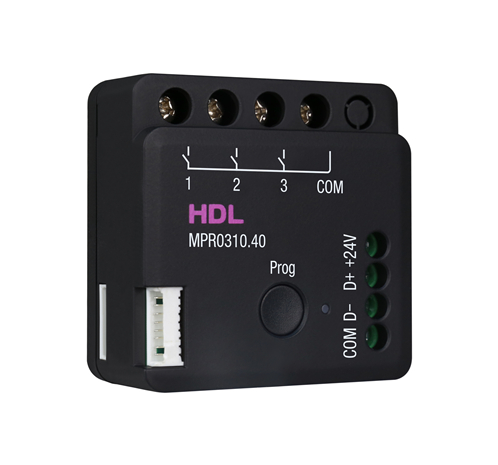

3CH 10A Flush-mounted Switching Actuator is a smart relay executive module installed in the wall box of the Chinese standard panel. The actuator has the characteristics of exquisite structure and rich circuits. The actuator adopts HDL Buspro protocol 485 Bus communication control, with 3CH 10A relay control channels, 7 dry contact signal input channels and 7 LED signal output channels.
3CH 10A Flush- mounted Switching Actuator is a smart relay executive module installed in the wall box of the Chinese standard panel. The actuator has the characteristics of exquisite structure and rich circuits. The actuator adopts HDL Buspro protocol 485 Bus communication control, with 3CH 10A relay control channels, 7 dry contact signal input channels and 7 LED signal output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting, curtain, fan, sockets, etc.
External Environment
Specifications
4CH 16A High Power Switch Actuator with Current Detection has 4 channels(16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.
8CH 16A High Power Switch Actuator with Current Detection has 8 channels (16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.
HDL-MDB0210.433 Mosfet power amplifier, work in conjunction with dimming module, used to increase the output current of the dimming module. It has 2 output channels and manual switch is available for each channel. And it has short circuit protection and over heat protection.
