1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)

1CH 16A Flush-mounted Switching Actuator (EU)

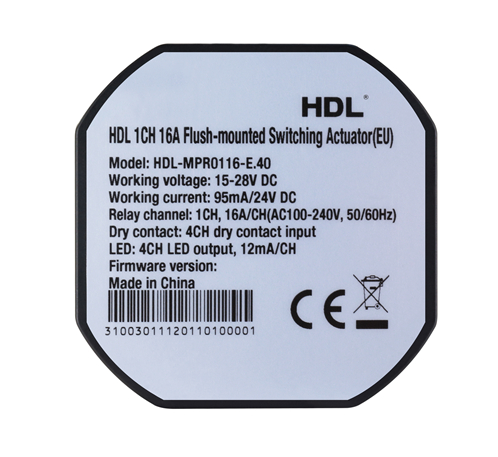

model:HDL-MPR0116-E.40

1CH 16A Flush-mounted Switching Actuator (EU) is a smart relay executive module installed in the wall box of the European standard panel. It has the characteristics of exquisite structure and rich circuits. The actuator adopts HDL Buspro protocol 485 Bus communication control, with 1CH 16A relay control channel(s), 4 dry contact signal input channels and 4 LED signal output channels.

1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)
1CH 16A Flush-mounted Switching Actuator (EU)

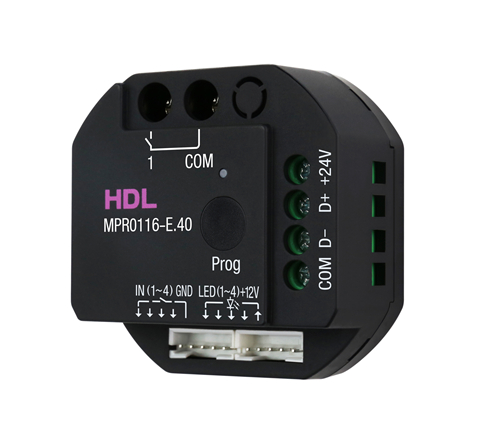

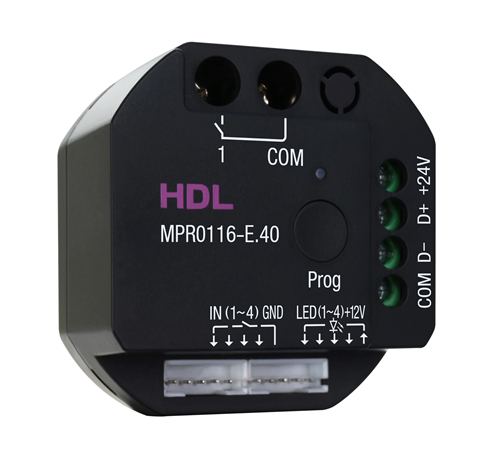

1CH 16A Flush- mounted Switching Actuator (EU) is a smart relay executive module installed in the wall box of the European standard panel. It has the characteristics of exquisite structure and rich circuits. The actuator adopts HDL Buspro protocol 485 Bus communication control, with 1CH 16A relay control channel(s), 4 dry contact signal input channels and 4 LED signal output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting,curtain, fan, sockets, etc.


■ With 1CH 16A relay switch control channel(s)
■ With 4 dry contact switch signal input channels, 4 LED switch signal output channels
■ With programming button and programming indicator, short press the programming button to control
all relay channels on/off


Basic Parameters
Working voltage :15~28V DC
Working current:HDL-MPR0116-E.40: 95mA/24V DC
Relay channel :HDL-MPR0116-E.40: 1CH, 16A/CH (AC100-240V, 50/60Hz)
Dry contact:4CH dry contact input
LED:4CH LED output, 12mA/CH
Communication:HDL Buspro
Cable diameter of Buspro terminal:0.6-0.8mm


External Environment

Working temperature :-5℃~45℃
Working relative humidity :≤90%
Storage temperature :-20℃~60℃
Storage relative humidity :≤93%

Specifications

Dimensions: HDL-MPR0116-E.40: 46.8mm×46.8mm×23mm
Net weight:HDL-MPR0116-E.40: 45g
Housing material:Flame retardant PC
Installation:Wall box (Figure 8 - 9)
Protection rating (Compliant with EN 60529) :IP20
