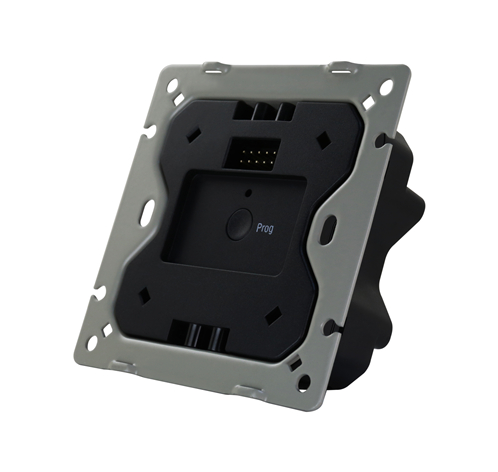

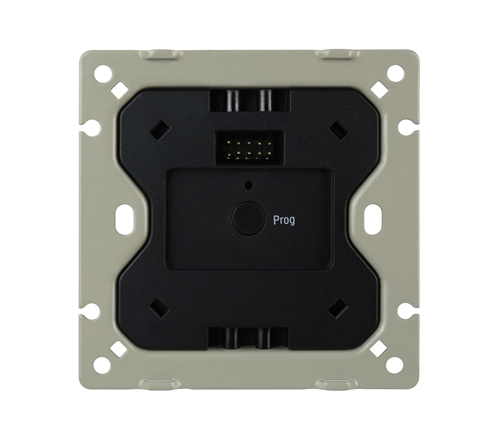

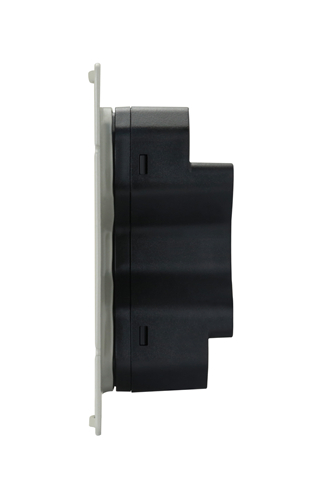

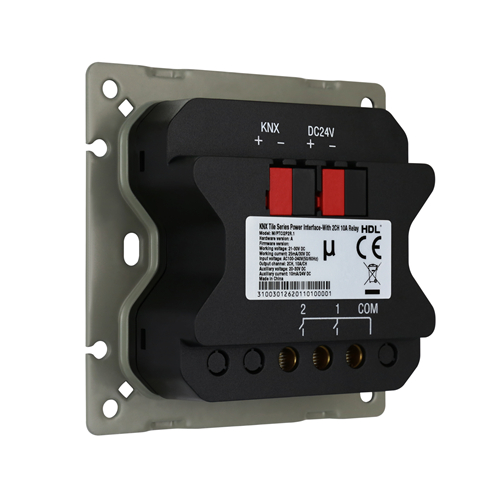

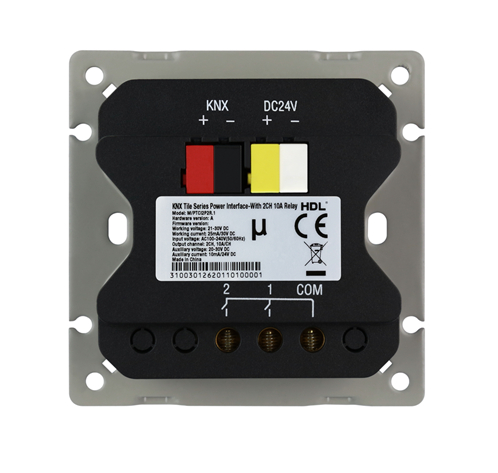

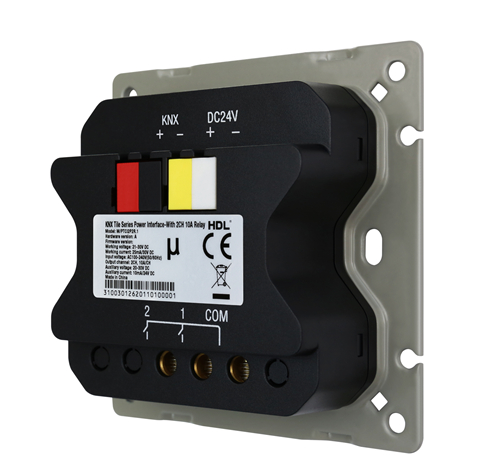

KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay

KNX Tile Series Power Interface-With 2CH 10A Relay

model:M/PTCI2P2R.1

KNX Tile Series Power Interface-With 2CH 10A Relay works in conjunction with KNX Tile Display, etc. and provides working power and communication signals to the panel.

KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay
KNX Tile Series Power Interface-With 2CH 10A Relay

KNX Tile Series Power Interface With 2CH 10A Relay works in conjunction with KNX Tile Display, etc.and provides working power and communication signals to the panel.


Its main functions include:
■ With 2 10A relay channels
■ With independent programming button and programming indicator
■ Short press the button to enter the programming mode, long press the programming button to realize all relay channel on/off
■ Provides power and communication signals for HDL Tile panel
■ With scene control, staircase light control, delay control functions
■ Relay usage time & frequency statistics
■ Relay health check (voltage detection)


Basic Parameters

Working voltage21~30V DC

Working current25mA/30V DC

Auxiliary voltage20~30V DC

Auxiliary current10mA/24V DC

Input voltage AC100-240V (50/60Hz)

Output channelM/PTCI2P2R.1: 2CH,10A/CH

Communication KNX

Cable diameter of KNX terminal0.6-0.8mm

External Environment

Working temperature-5℃~45℃

Working relative humidity≤90%

Storage temperature-20℃~60℃

Storage relative humidity≤93%

Specifications

Dimensions 81.4×81.4×32.4 (mm)

Net weight 92g

Housing materialIron, PC

Installation Wall box

Protection rating (Compliant with EN 60529)IP20
