model:HDL-MPR0210-S.40

Power Interface-With 2CH 10A Relay is a standard panel power interface with relay channels. The power interface has an independent device ID address, including 2 10A relay channels, and adopts HDL Buspro protocol 485 Bus communication.

Power Interface-With 2CH 10A Relay
Power Interface-With 2CH 10A Relay
Power Interface-With 2CH 10A Relay
Power Interface-With 2CH 10A Relay
Power Interface-With 2CH 10A Relay
Power Interface-With 2CH 10A Relay

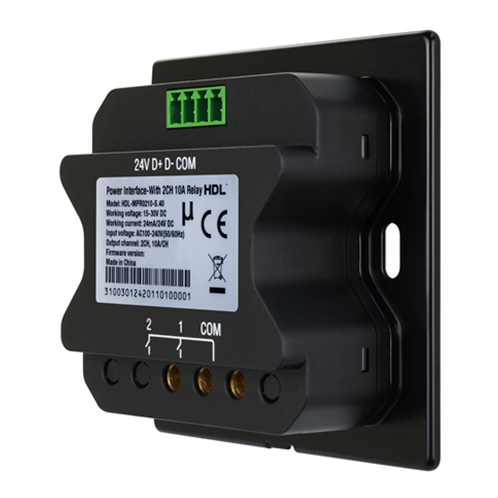

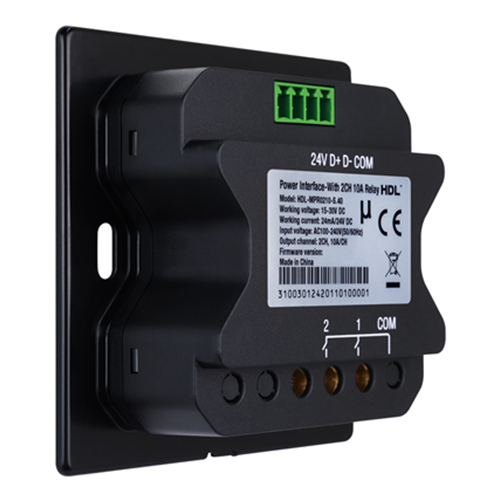

Power Interface- with 2CH 10A Relay  is a standard panel power interface with relay channels. The power interface has an independent device ID address, including 2 10A relay channels, and adopts HDL Buspro protocol 485 Bus communication. The relay channels can be switched on and off through the device ID address, and it can also be used as a power interface for HDL standard panel. In conjunction with HDL standard panel installed on the 86 wall box, it can realize the intelligent control of household lighting, curtains, fans, sockets and other electrical equipment.
Its main functions include:
■ With 2-channel 10A magnetic latching relay channel

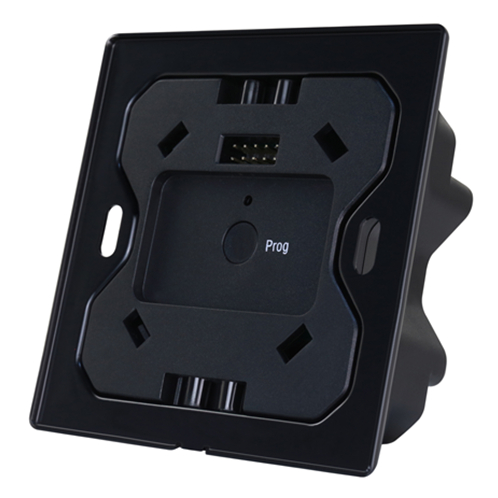

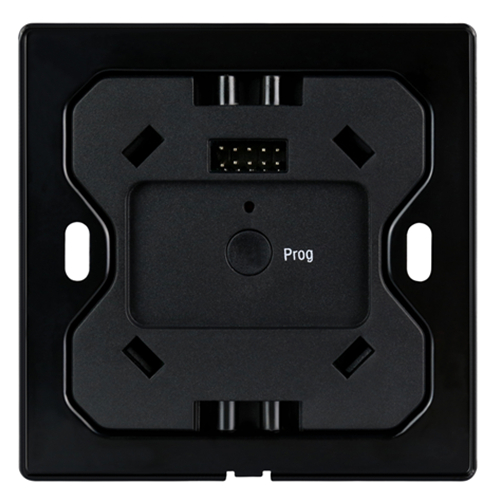

■ With independent programming button and programming indicator
■ Short press the programming button to realize all relay channels on/off
■ Provide power and communication interface for HDL standard panel

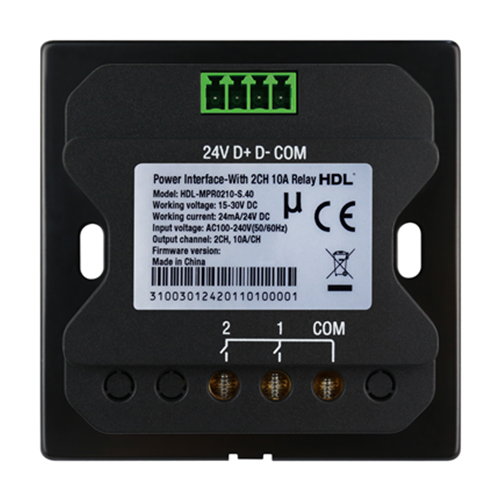

Basic Parameters
Working voltage:15-30V DC
Working current:24mA/24V DC
Input voltage:AC100-240V (50/60Hz)
Output channel :HDL-MPR0210-S.40: 2CH, 10A/CH
Communication:HDL Buspro
Cable diameter of Buspro terminal:0.6-0.8mm


External Environment

Working temperature :-5℃~45℃
Working relative humidity :≤90%
Storage temperature :-20℃~60℃
Storage relative humidity :≤93%


Specifications

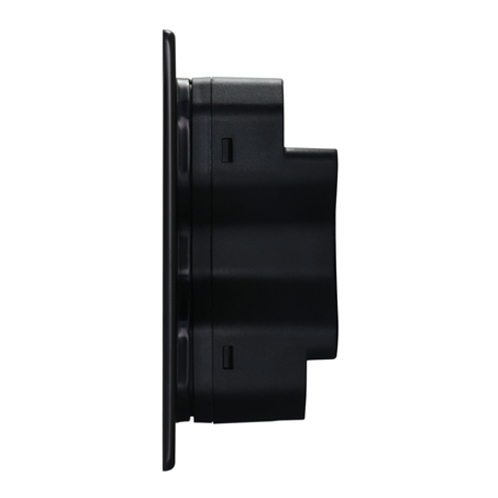

Dimensions: 80mm×80mm×31.9mm
Net weight :106g
Housing material: Iron, PC
Installation: Wall box
Protection rating (Compliant with EN 60529) :IP20
