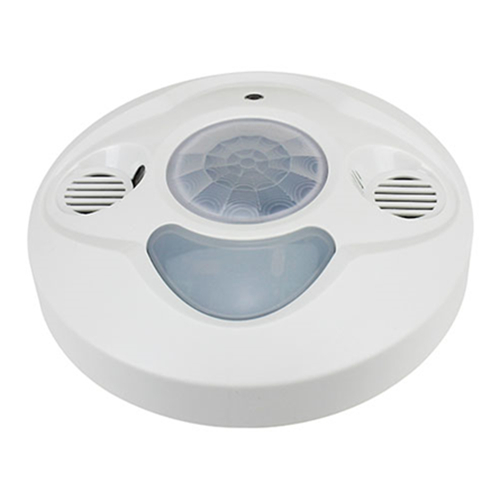

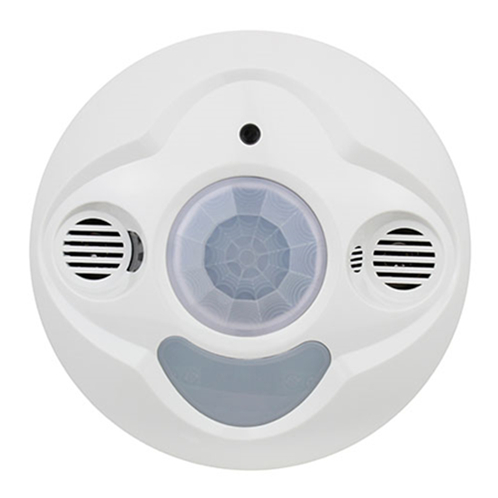

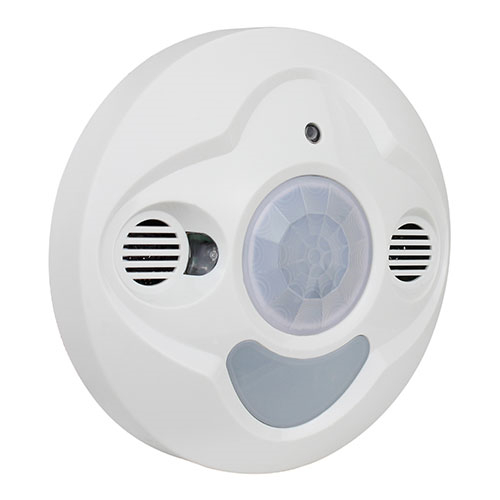

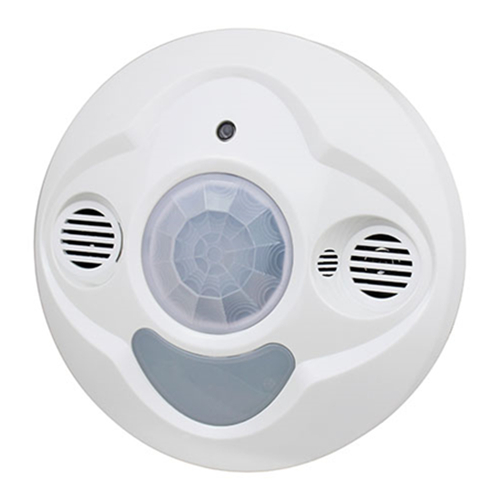

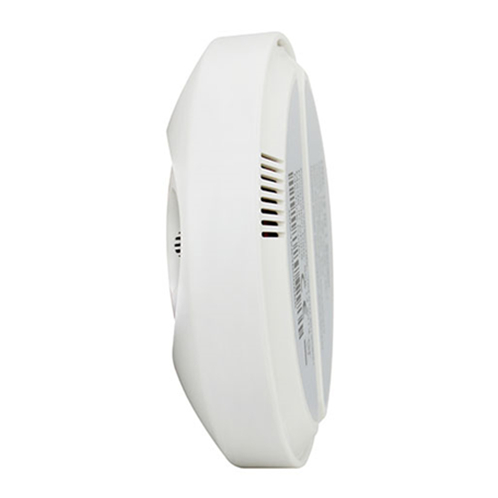

model:HDL-MSPIR.2C

Multi-function Presence Sensor is a 24V low-voltage multi-function presence sensor, which is with dry contact signal output. Including PIR motion sensor, ultrasonic sensor and LUX sensor, the presence sensor can be used for automatic control, and can be set by the customer to delay control devices.

Multi-function Presence Sensor
Multi-function Presence Sensor
Multi-function Presence Sensor
Multi-function Presence Sensor
Multi-function Presence Sensor

Multi-function Presence Sensor is a 24V low-voltage multi-function presence sensor, which is with dry contact signal output. Including PIR motion sensor, ultrasonic sensor and LUX sensor, the presence sensor can be used for automatic control, and can be set by the customer to delay control devices.

■ 3 input conditions in total: PIR motion, ultrasonic, LUX.

■ 1-channel of 5A relay output can be used to control lights.

■ Built-in PID for constant illumination control. The setting value can be changed according to the needs of environmental setting.

■ The delay shutdown time can be set according to customer needs. The function is used to turn off the lights when the sensor does not detect movement after a specified time.


Basic Parameters

Working voltage: 18~30V DC

Working current: 90mA/24V DC

Illumination detection range: 0-35000Lux

PIR detection range in diameter: 12m (installation height: 3m)

Ultrasonic detection in diameter: 12m (installation height: 3m)

Communication: Dry contact


External Environment

Working temperature: -5°C~45°C

Working relative humidity: ≤90%

Storage temperature: -20℃~60℃

Storage relative humidity: ≤93%


Specifications

Dimensions: Φ110mm×35mm

Net weight: 207g

Housing material: Lens, ABS

Installation: Ceiling mount

Protection rating (Compliant with EN 60529): IP20
