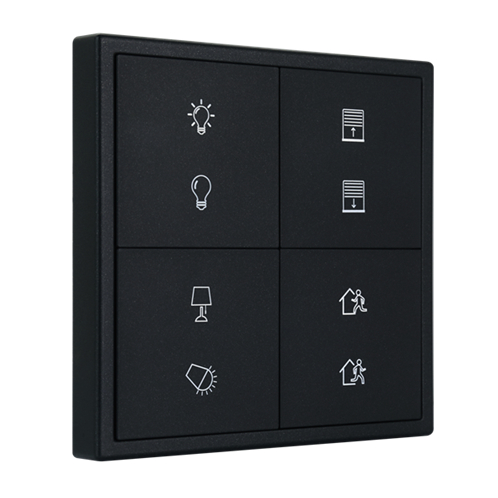

Tile series Button Panel 2.0 contains 1/2/4-button panels. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level can be set by HDL Buspro Setup Tool or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc.
Tile series Button Panel 2.0 contains 1/2/4-button panels. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level
can be set by HDL Buspro Setup Tool or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc.
■ Built-in temperature sensor
■ Built-in proximity sensor
■ Icons and text of each button support laser labelling.
■ Adjustable backlight brightness level via HDL Buspro Setup Tool or manual setting on the panel.
■ Button modes: Single on/off, Single on, Single off, Combination on, Combination off, Combination
on/off, Double click/single on/off, Double click/combination on/off, Momentary, Short/long press,
Short press/long momentary.
■ Control types: Scene, Sequence, Timer Switch, Universal Switch, Single Channel Lighting Control,
Broadcast Scene, Broadcast Channel, Curtain Switch, GPRS Control, Panel Control, Security Mod
ule, Music Control, General Control, etc.
■ Button lock function.
■ Online update via HDL Buspro Setup Tool.
Basic Parameters
Working voltage: 12~30V DC
Working current : HDL-MP1B/TILE.48: 9.5mA/24V DC
HDL-MP2S/TILE.48: 13.4mA/24V DC
HDL-MP2B/TILE.48: 13.4mA/24V DC
HDL-MP4S/TILE.48: 13.5mA/24V DC
HDL-MP4B/TILE.48: 13.5mA/24V DC
HDL-MP4B-A/TILE.48: 13.5mA/24V DC
Communication: HDL Buspro
Cable diameter of Buspro terminal:0.6-0.8mm
External Environment
Working temperature :-5℃~45℃
Working relative humidity :≤90%
Storage temperature :-20℃~60℃
Storage relative humidity :≤93%
Specifications
Dimensions :Plastic version: 86×86×11(mm)
Net weight :Plastic version: 64g
Housing material :Plastic version: Flame retardant PC
Protection rating (Compliant with EN 60529) :IP20
