Buspro-RS485 Interface Mini
Buspro-RS485 Interface Mini
Buspro-RS485 Interface Mini
Buspro-RS485 Interface Mini

Buspro-RS485 Interface Mini

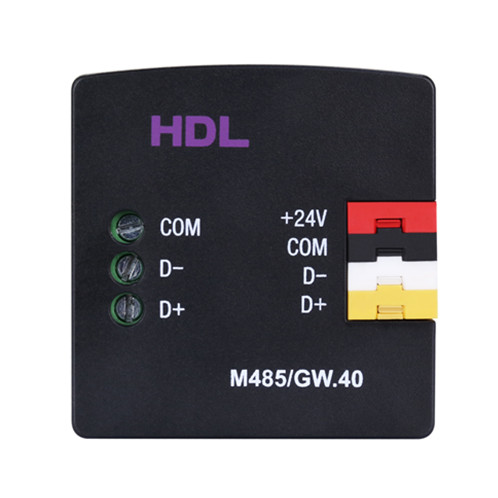

model:HDL-M485/GW.40

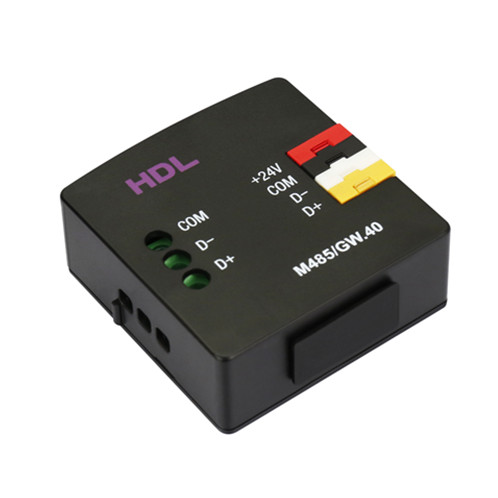

Buspro-RS485 Interface Mini enables the bidirectional communication between the RS485 interface device and the Buspro device. And its small size has the advantage of increasing space utilization.

Buspro-RS485 Interface Mini
Buspro-RS485 Interface Mini
Buspro-RS485 Interface Mini
Buspro-RS485 Interface Mini

Buspro-RS485 Interface Mini enables the bidirectional communication between the RS485 interface device and the Buspro device. And its small size has the advantage of increasing space utilization.

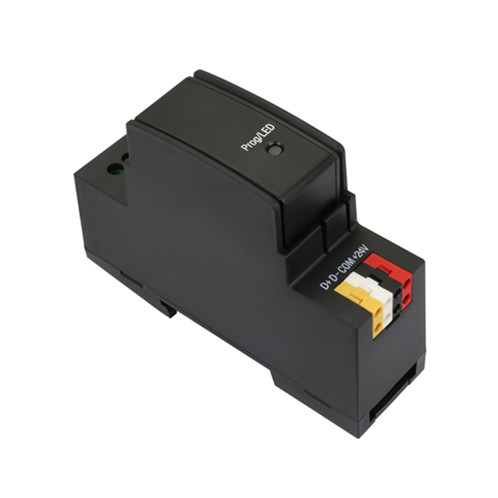

It is installed in the electric box by the base + module combination method, which occupies about 1.5P of the distribution box
■ Supports mutual transfer between RS485 and Buspro protocol
■ With a RS485 interface
■ Conversion modes: string, hexadecimal, and data mode
■ Supports a variety of baud rates, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
■ Up to 200 control targets supported
■ The user can customize the instruction identifier
■ HDL Buspro communication supported
■ Online update/manual update supported


Basic Parameters

Working voltage 18~36V DC

Working current 12mA/24V DC

Baud rate

1200, 2400, 4800, 9600,14400, 19200, 38400, 57600,

115200bps

Data bit 8

Stop bit 1, 2

Communication HDL Buspro/RS485


External Environment

Working temperature -5℃~45℃

Working relative humidity ≤90%

Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications

Dimensions

Buspro-RS485 Interface Mini: 45mm×46mm×18mm

Base: 90mm×64mm×27mm

Net weight

Buspro-RS485 Interface Mini: 25g

Base: 45g

Housing material

Buspro-RS485 Interface Mini: Flame retardant PC+ABS

Base: Flame retardant PA66

Installation

Wall box installation

35mm DIN rail installation

Protection rating (Compliant with EN 60529) IP20
