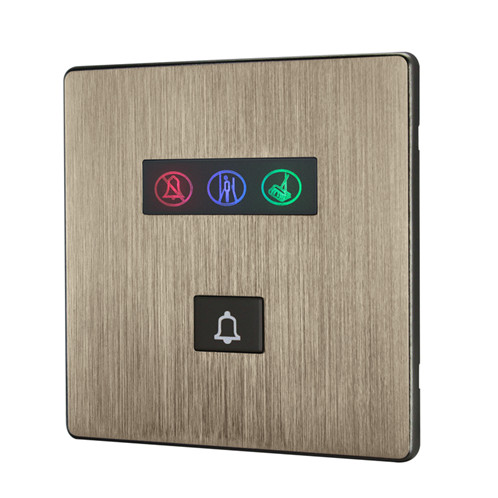

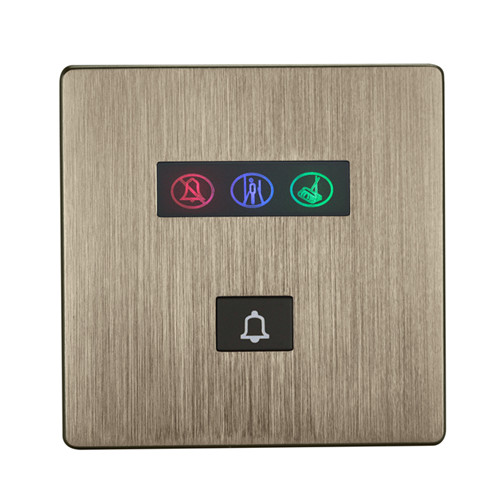

iElegance Series 3S Smart Door Bell
iElegance Series 3S Smart Door Bell

iElegance Series 3S Smart Door Bell

model:HDL-MPB03.48

iElegance Series 3S Smart Door Bell is the matching product of HDL Hotel Room Management System. Installed by the door of the hotel room, the panel can be controlled by button panel or other matching devices in order to show the user’s requirements. It can indicate DND status, ask for room-cleaning and used as doorbell, etc.

iElegance Series 3S Smart Door Bell
iElegance Series 3S Smart Door Bell

iElegance Series 3S Smart Door Bell is the matching product of HDL Hotel Room Management System. Installed by the door of the hotel room, the panel can be controlled by button panel or other matching devices in order to show the user’s requirements. It can indicate DND status, ask for room-cleaning and used as doorbell, etc.

■ Door Bell function, if DND is ON, it will be OFF
■ DND display: Do not Disturb
■ Ask for room-cleaning service
■ Back light is adjustable
■ Communication: HDL Buspro


Basic Parameters
Working voltage 12~30V DC
Working current 25mA/24V DC
Communication HDL Buspro

Cable diameter of Buspro terminal 0.6-0.8mm


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 86×86×22 (mm)
Net weight 98g
Housing material ABS, Aluminum
Installation Wall box
Protection rating (Compliant with EN 60529) IP20
