RF Intelligent Door Bell and Access Reader
RF Intelligent Door Bell and Access Reader
RF Intelligent Door Bell and Access Reader

RF Intelligent Door Bell and Access Reader

model:HDL-MPTB01RF.48

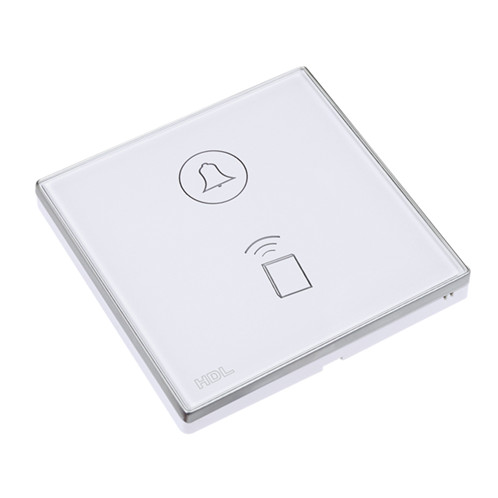

RF Intelligent Door Bell and Access Reader is a doorbell product with touch panel, which is the matching product of HDL control system. It is installed by the hotel room door and has the functions of doorbell and unlocking through swiping RF card.

RF Intelligent Door Bell and Access Reader
RF Intelligent Door Bell and Access Reader
RF Intelligent Door Bell and Access Reader

RF Intelligent Door Bell and Access Reader is a doorbell product with touch panel, which is the matching product of HDL control system. It is installed by the hotel room door and has the functions of doorbell and unlocking through swiping RF card.

■ Optional backlight RGB colors
■ Door bell for visitors
■ Display requirement of cleaning room
■ 1-99 targets can be controlled when user touch the door bell.
■ 1-49 targets can be controlled when user swipe the card.
■ The touch sensitivity can be adjusted.
■ Supports upgrade from HDL Buspro


Basic Parameters
Working voltage 12~30V DC
Working current 45mA/24V DC
Supported card type MIFARE ONE S50 13.56MHz

Communication HDL Buspro


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 86×86×10.5 (mm)
Net weight 119g
Housing material Glass
Installation Wall box
Protection rating (Compliant with EN 60529) IP20
