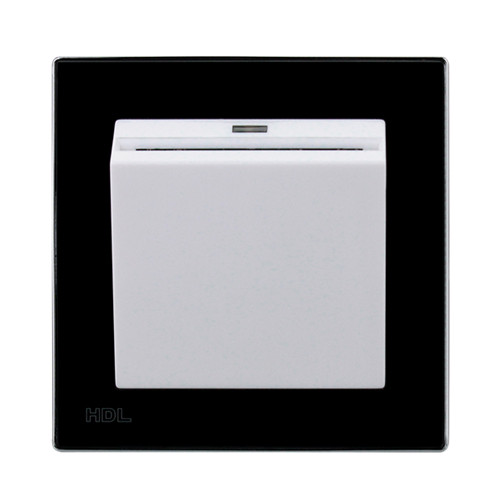

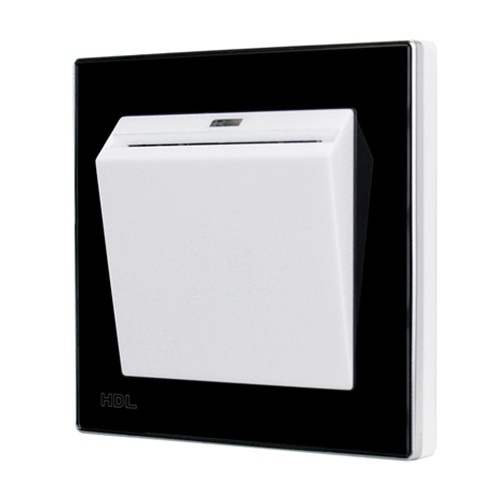

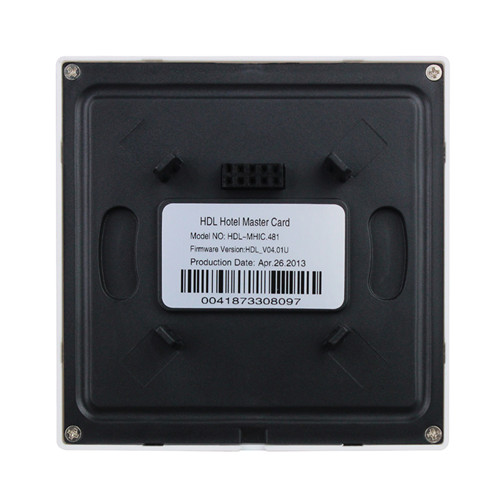

RF Card Reader & Master Control
RF Card Reader & Master Control
RF Card Reader & Master Control

RF Card Reader & Master Control

model:HDL-MHIC.48

RF Card Reader & Master Control is designed to control the master card energy gaining and hotel guest room facility using. It has built-in MIFARE RF card reader and can recognize different types of card, including guest card, waiter card, cleaner card, mender card and administrator card.

RF Card Reader & Master Control
RF Card Reader & Master Control
RF Card Reader & Master Control

RF Card Reader & Master Control is designed to control the master card energy gaining and hotel guest room facility using. It has built-in MIFARE RF card reader and can recognize different types of card, including guest card, waiter card, cleaner card, mender card and administrator card.

■ Supports master card energy gaining & power management.
■ Supports ID recognition, scene control in accordance with various types of card.
■ Supported card types: Guest card, waiter card, cleaner card, mender card and administrator card.
■ The device can be set as mechanical switch when a card is inserted or taken off. Up to 49 targets can be set to be controlled by the switch. Up to 99 targets can be set to be controlled by the switch in other key modes.
■ Online upgrading via HDL Buspro.


Basic Parameters
Working voltage 12~30V DC
Working current 24mA/24V DC
Supported card type MIFARE ONE S50 13.56MHz

Communication HDL Buspro


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 86×86×20.5 (mm)
Net weight
MHIC.48(Glass): 107(g)
MHIC.48(Aluminum): 68(g)
Housing material
MHIC.48(Glass): Glass, ABS
MHIC.48 (Aluminum): Aluminum, ABS
Installation Wall box
Protection rating (Compliant with EN 60529) IP20
