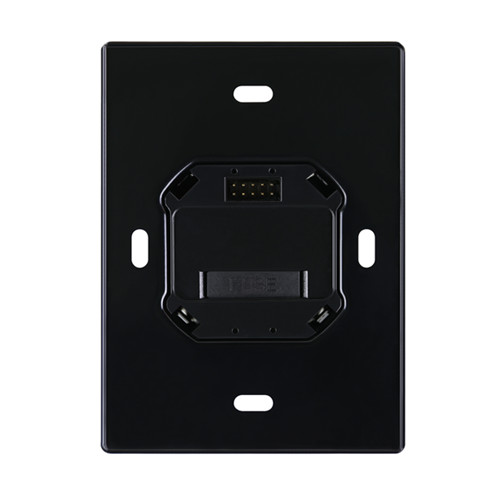

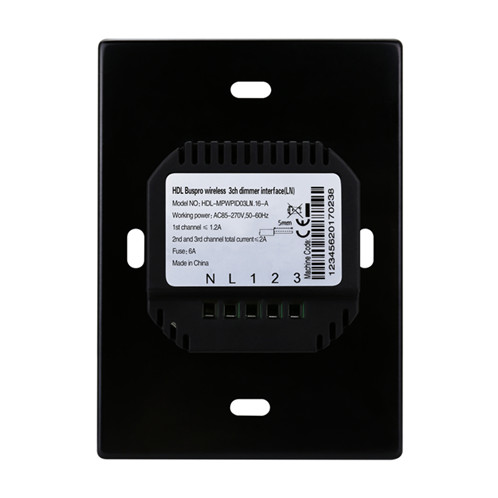

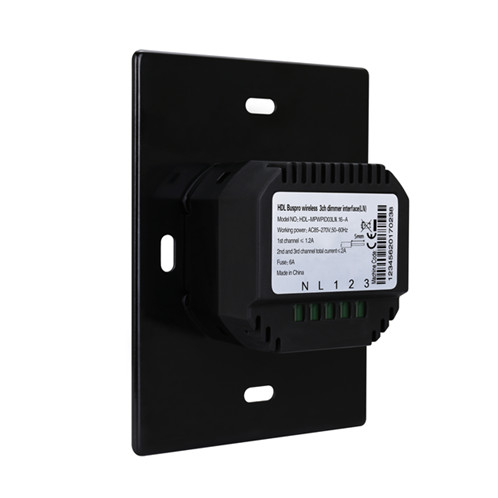

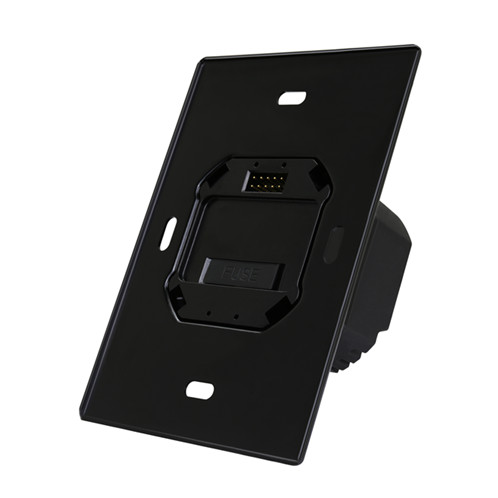

3CH Wireless Dimming Power Interface US (L+N Type)

model:MPWPID03LN.16-A

Wireless power interface, which is fire and null wire for dimmer, works with wireless panel, it has the function of dimming and switch.There are two sizes, EU and US.

 3CH Wireless Dimming Power Interface US  (L+N Type)
 3CH Wireless Dimming Power Interface US  (L+N Type)
 3CH Wireless Dimming Power Interface US  (L+N Type)
 3CH Wireless Dimming Power Interface US  (L+N Type)

Wireless power interface, which is fire and null wire for dimmer, works with wireless panel, it has the function of dimming and switch. There are two sizes, EU and US.


■ Supply DC5V power for wireless panels

■ 1st channel is MOSFET dimming/switch 2nd and 3rd are TRIAC dimming/switch

■ Short circuit protection

■ Over heating protection


Electrical Parameters

Product name 3CH fire and null wire dimming

Product number

HDL-MPWPID03LN.16-A (US)

Working voltage AC85-270V 50/60Hz

Output channel 1channel/3 channels

Output current

1st channel≤1.2A,

2nd and 3rd channel total current≤2A

Fuse

01LN: 4A, aR type

03LN: 6A, aR type


Environmental Conditions:

Working temperature -5℃~45℃

Working relative humidity <90%<>

Storage temperature -20℃~+60℃

Storage relative humidity <93%<>


Approved:

CE

RoHS


Product Information:

Dimensions

80×110.5×39(mm)(US)

Weight 128g/138g

Housing material Inflaming retarding nylon

Installation

wall box (the depth of wall box should not less than 45mm)

Protection rating IP20

Fire and null wire 2.5mm2 copper cable

Load wire 2.5mm2 copper cable
