MOSFET Power Amplifier
MOSFET Power Amplifier
MOSFET Power Amplifier
MOSFET Power Amplifier

MOSFET Power Amplifier

model:HDL-MDB0210.433

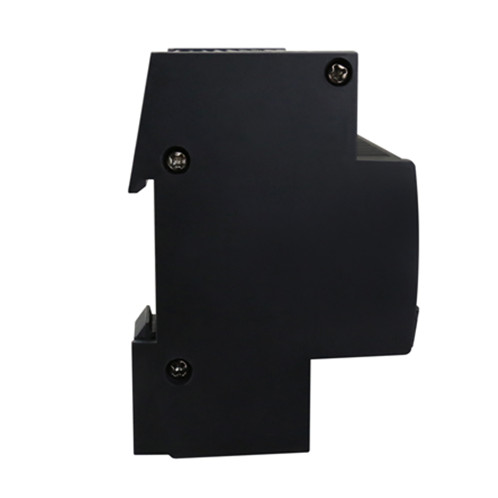

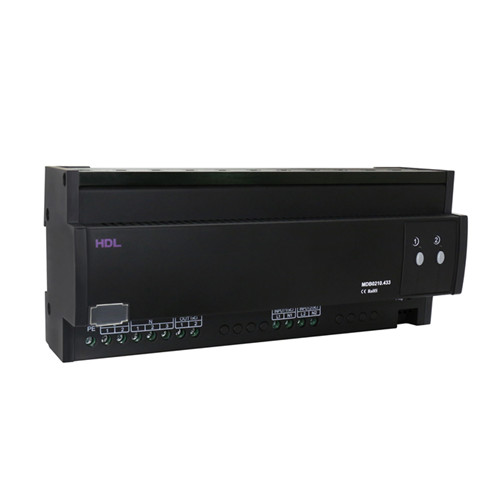

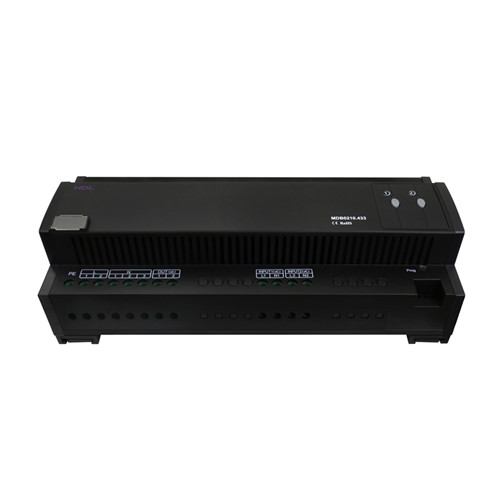

HDL-MDB0210.433 Mosfet power amplifier, work in conjunction with dimming module, used to increase the output current of the dimming module. It has 2 output channels and manual switch is available for each channel. And it has short circuit protection and over heat protection.

MOSFET Power Amplifier
MOSFET Power Amplifier
MOSFET Power Amplifier
MOSFET Power Amplifier

HDL-MDB0210.433 Mosfet power amplifier, work in conjunction with dimming module, used to increase the output current of the dimming module. It has 2 output channels and manual switch is available for each channel. And it has short circuit protection and over heat protection.


■ Mosfet dimming mode
■ It must work in conjunction with dimmer
■ Each output channel has LED status indicator and manual control switch
■ It has short circuit protection and over heat protection
■ When the temperature of the aluminum alloy radiator on the mosfet power amplifier reaches 80℃, the output power starts to decrease; when it reaches 85℃, stop to output power; when it goes down to 80℃, the output power starts to work again
■ Two output channels can be combined into one channel, the output current increase to 16A (The input is the first channel)


Electrical Parameters:
AC power input AC110/230V
Output channel 2CH,10A/CH
Maximum output channel
current in total
16A

Dimming mode Trailing edge


Environmental Conditions:
Working temperature -20℃~45℃
Working relative humidity Up to 90%
Storage temperature -20℃~+60℃

Storage relative humidity Up to 93%


Approved
CE

RoHS


Product Information:
Dimensions 216×90×66 (mm)
Weight 540.5(g)
Housing material Nylon, PC, Aluminum alloy
Installation 35mm Din Rail installation
Protection degree IP20
