KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module

KNX HVAC Module

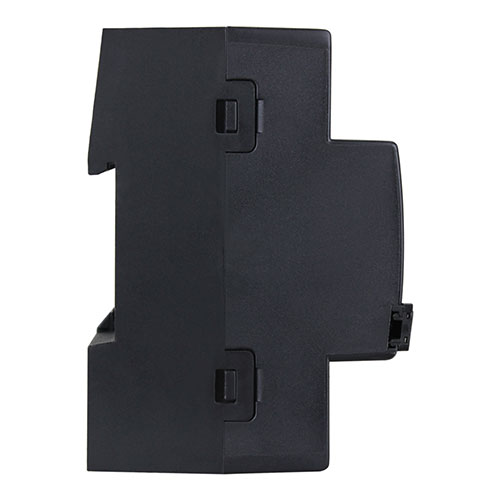

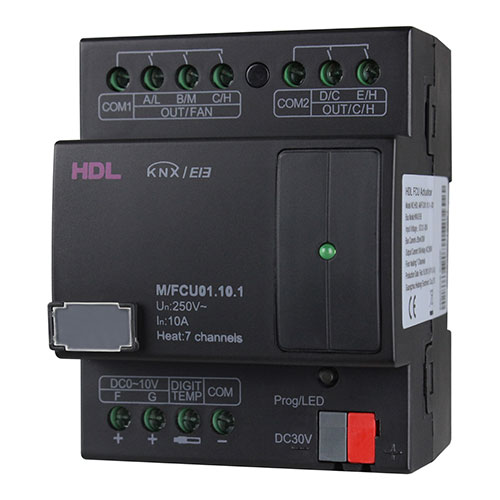

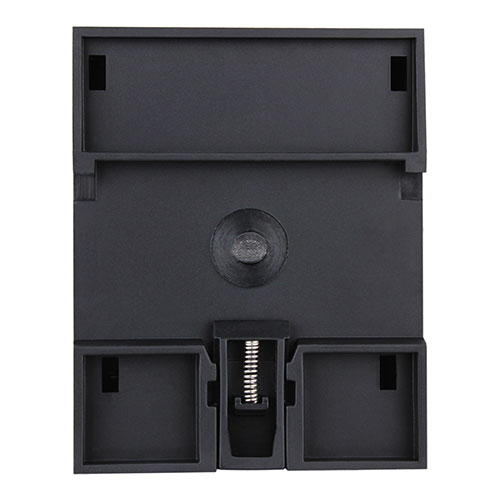

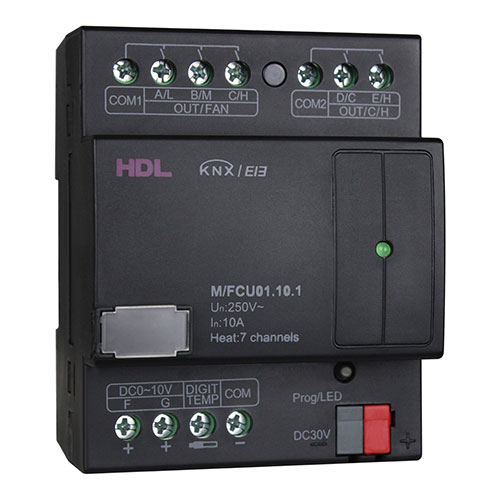

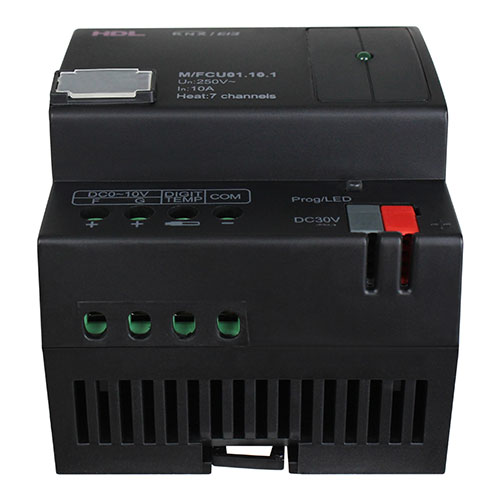

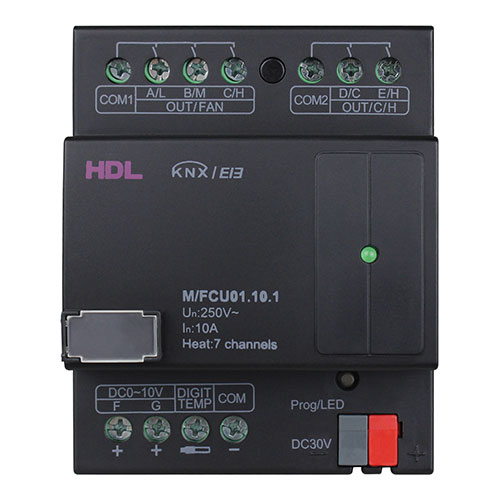

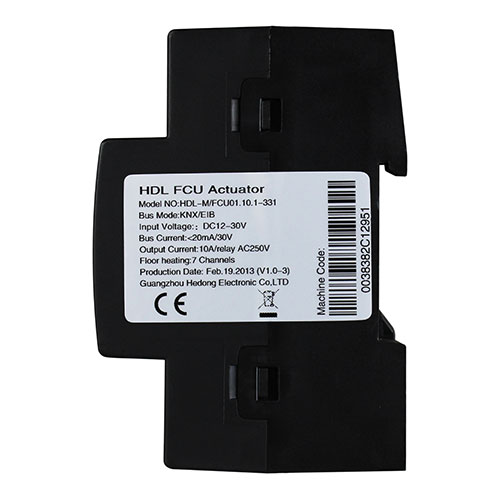

model:M/FCU01.10.1

KNX HVAC Module belongs to HDL KNX/EIB series, and it supports control of heating, cooling, high/medium/low fan speed. 7 independent floor heating control channels can be set. In conjunction with digital temperature sensor, the actuator achieves precise temperature control. In addition, 5 switch output channels and 2 DC0-10V output channels can be set for staircase lights and other requirements.

KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module
KNX HVAC Module

KNX HVAC Module belongs to HDL KNX/EIB series, and it supports control of heating, cooling, high/medium/low fan speed. 7 independent floor heating control channels can be set. In conjunction with digital temperature sensor, the actuator achieves precise temperature control. In addition, 5 switch output channels and 2 DC0-10V output channels can be set for staircase lights and other requirements.

7 independent floor heating control channels

Up to 7 digital temperature sensors supported

5 relay output channels

2 DC0-10V output channels (10mA/CH)

Fan speeds: High, Medium, Low

Working modes: Heating, Cooling

Operation modes: Comfortable, Standby, Night, Protection

Main functions: Fan speed, Valve status report, Local 7 channels temperature sampling, Local temperature report,     Operation time statistics, Channel status response, Power-on status recall, Power-off status saving, Staircase

 lights, On/Off delay, Protection delay, PWM control output

Active control and passive control: More flexible to work in conjunction with panels by different manufacturers.

 When in active control mode, this module can work in conjunction with panels without PI algorithm, for example

 M/DLP04.1.

When in passive control mode, this module can work in conjunction with panels with algorithm, for example

Siemens 5WG1.

Supports online update



Basic Parameters
Working voltage:21~30V DC
Working current:20mA/30V DC
Input voltage:120V/240V AC(50/60Hz)
Communication:KNX
Detecting temperature range:-30℃~+100℃
Temperature sensor:2.5m Digital Temperature Sensor (TS/C 1.0)
Communication :KNX
Output terminal :Line in, line out cable for each channel 2.5-4mm2
Output channel :5CH, 10A/CH
0-10V output:2CH, 10mA/CH
Cable diameter of KNX terminal:0.6 - 0.8mm
Electrical life time:>100000
Mechanical life time:>100000


External Environment

Working temperature:-5℃~45℃
Working relative humidity:≤90%
Storage temperature:-20℃~60℃
Storage relative humidity:≤93%


Specifications

Dimensions:90mm×72mm×64mm
Net weight :310g
Housing material:Frame-retardant nylon
Installation:35mm DIN rail installation
Protection rating (Compliant with EN 60529) :IP20
