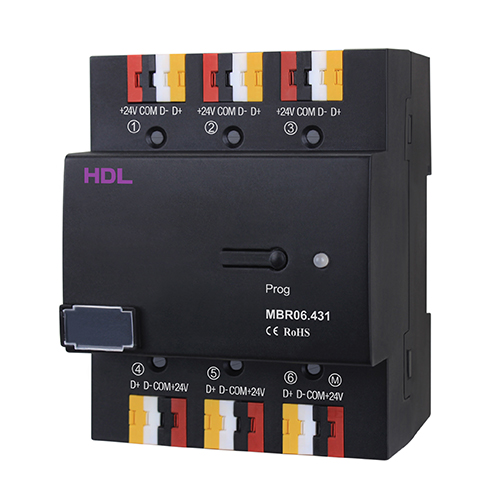

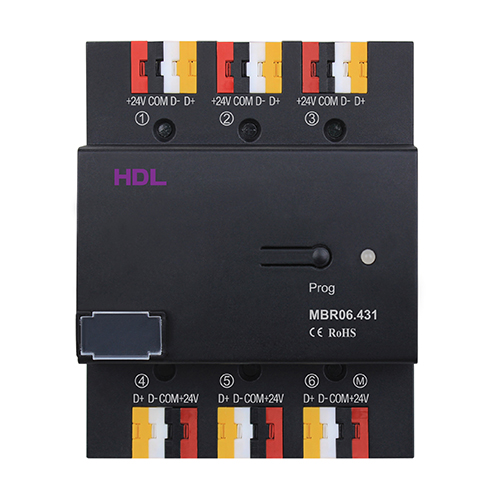

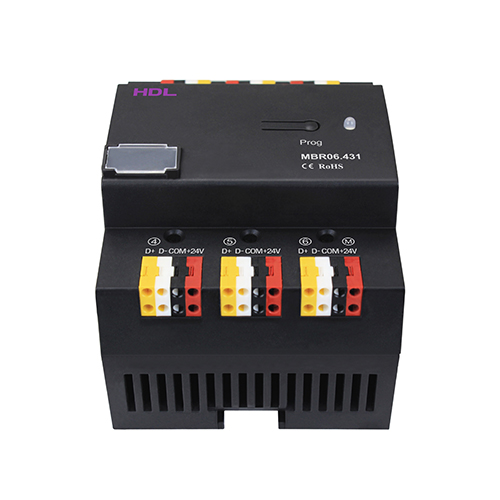

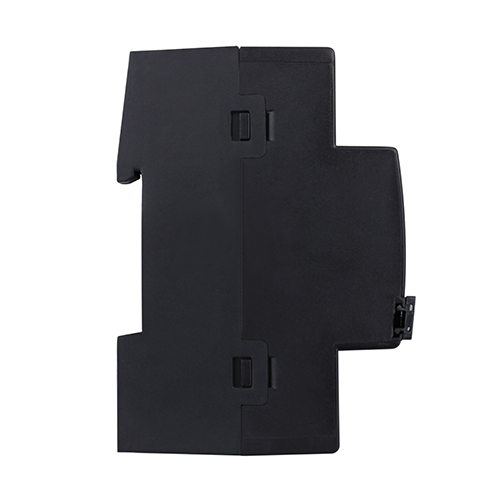

HDL 6 Ports Switch
HDL 6 Ports Switch
HDL 6 Ports Switch
HDL 6 Ports Switch

HDL 6 Ports Switch

model:HDL-MBR06.431

HDL 6 Ports Switch works with 1 Port Programming Gateway (HDL-MBUS01IP.431) to expand device connection and is convenient for wiring. Each Bus cable is electrically isolated and data filtering function can reduce data flow.

HDL 6 Ports Switch
HDL 6 Ports Switch
HDL 6 Ports Switch
HDL 6 Ports Switch

HDL 6 Ports Switch works with 1 Port Programming Gateway (HDL-MBUS01IP.431) to expand device connection and is convenient for wiring. Each Bus cable is electrically isolated and data filtering function can reduce data flow.

■ Data filtering
■ Data checking
■ 6 bus cables supported, up to 63 devices connection supported for each bus cable
■ Communication: HDL Buspro
■ Supports online upgrade


Basic Parameters
Working voltage 12~30V DC
Working current 15mA/24V DC
Ports 6
Devices for each port 0-63

Communication HDL Buspro


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 72mm×90mm×64mm
Net weight 139g
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
