750mA Power Supply Module
750mA Power Supply Module
750mA Power Supply Module
750mA Power Supply Module
750mA Power Supply Module

750mA Power Supply Module

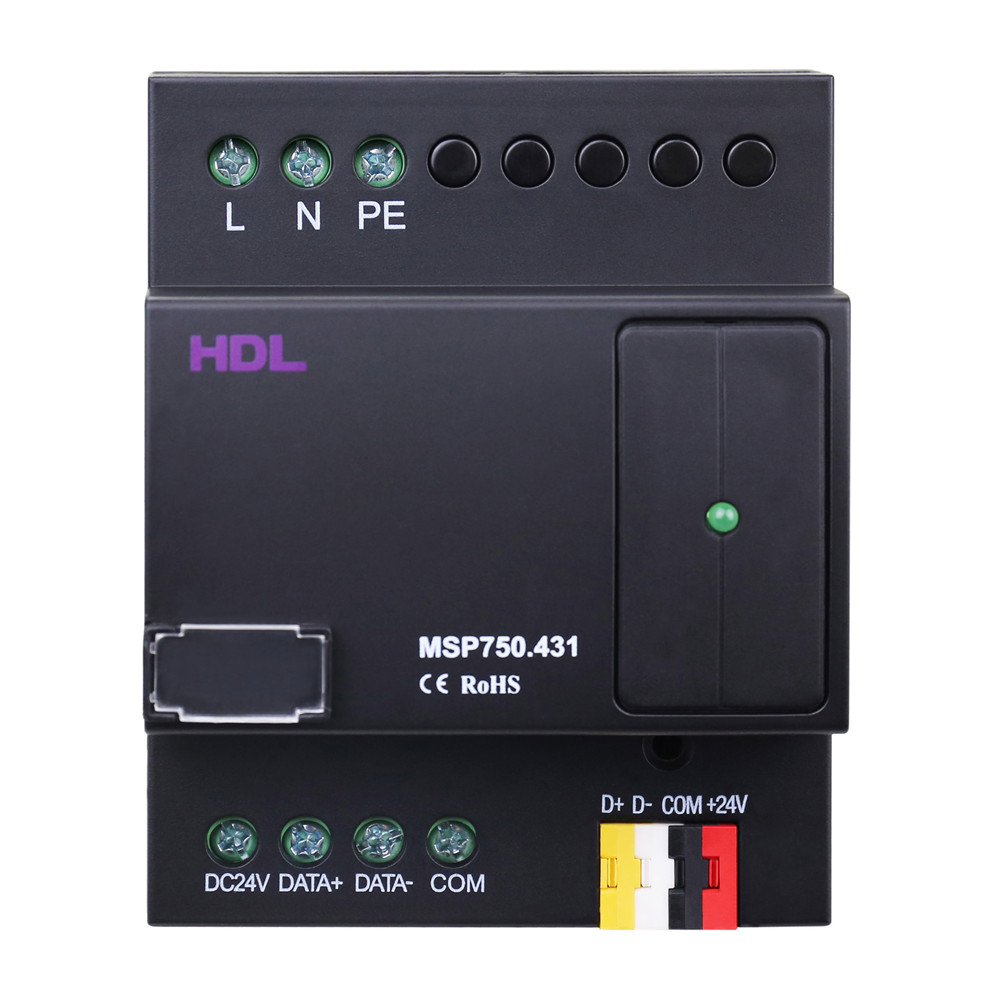

model:HDL-MSP750.431

750mA Power Supply Module can provide 24V DC voltage, 750mA current with 2 connection types. The total current can reach 750mA.

750mA Power Supply Module
750mA Power Supply Module
750mA Power Supply Module
750mA Power Supply Module
750mA Power Supply Module

750mA Power Supply Module can provide 24V DC voltage, 750mA current with 2 connection types. The total current can reach 750mA.

■ Protection: Short circuit and over current protection
■ Voltage Supply: 24V DC
■ Ripple Wave: Less than 150mV


Basic Parameters
Input voltage AC100-240V(50/60Hz)
Output current 750mA
Output voltage 24V DC

Output ripple wave Less than 150mV


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 72mm×90mm×64mm
Net weight 188g
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
