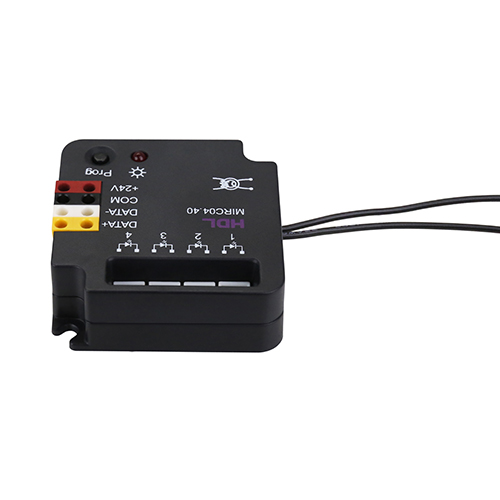

model:HDL-MIRC04.40

4CH IR Emitter with Current Detection can download codes saved in HDL Buspro Setup Tool, or codes uploaded to the IR Code Learner. HDL-MIRC04.40 can then transmit the IR codes to control IR devices, for example, air conditioner, TV, fan, projector, Set-Top Box, DVD etc. It also supports current detection for devices.

4CH IR Emitter with Current Detection
4CH IR Emitter with Current Detection
4CH IR Emitter with Current Detection
4CH IR Emitter with Current Detection
4CH IR Emitter with Current Detection

4CH IR Emitter with Current Detection can download codes saved in HDL Buspro Setup Tool, or codes uploaded to the IR Code Learner. HDL-MIRC04.40 can then transmit the IR codes to control IR devices, for example, air conditioner, TV, fan, projector, Set-Top Box, DVD etc. It also supports

■ Current detection: Detect if the device is power-on or power-off.
■ 4 IR emission channels drive the transmitting tube directly.
■ Supports 24 devices and 100 IR codes.
■ Built-in IR code library holds IR codes from common appliance manufactures.
■ Codes that are not presented in the IR library can be uploaded via the IR learner.
■ Sequence function, to call the sequence by universal switch, the UV switch number is 201-208.
■ Supports up to 99 UV switches.
■ Supports online update via HDL Buspro Setup Tool.
■ Supports easy programming.



Basic Parameters
Working voltage 12~30V DC
Working current 30mA/24V DC
Sending carrier wave frequency 38kHz

IR control distance 5m


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 45mm×45mm×16mm
Net weight 58g
Housing material Flame retardant ABS
Installation 86×86 wall box, Screw fix installation
Protection rating (Compliant with EN 60529) IP20
