Products

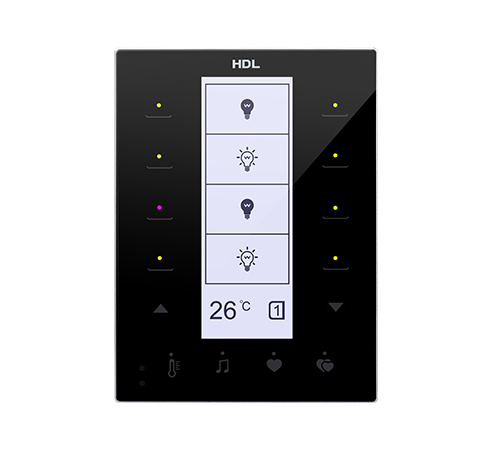

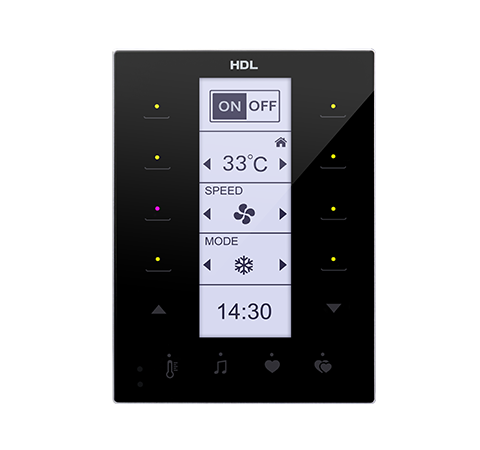

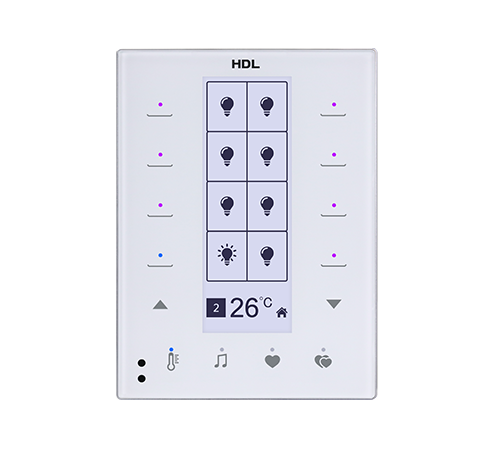

DLP Touch

DLP Touch is designed to offer you a quick and simple touch-control experience. Its face is entirely covered by one piece of glass. With the LCD in the middle, you can have the icons or text customized. Every time you touch the panel, you clearly know what to control. Not a single thought is needed.

Specs

Mono-color LCD

Customizable icons and captions

Built-in temperature sensor, proximity sensor, IR receiver

Aluminum frame

Power supple: DC 24V

Dimensions: 86 x 116.5 mm (US)

DLP Touch

DLP Touch


Product code: HDL-M/MPT14.1-A2-46

Working voltage: 21~30V DC

Working current: 12mA/30V DC

Communication: KNX

Cable diameter of KNX terminal: 0.6 - 0.8mm

Working temperature : -5℃~45℃

Working relative humidity : ≤90%

Storage temperature : -20℃~60℃

Storage relative humidity : ≤93%

Housing material : Glass, PC, ABS, Aluminum
DLP Touch
