Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel

Tile emergency panel

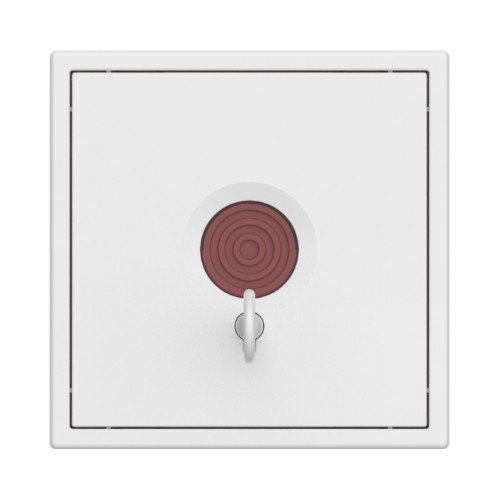

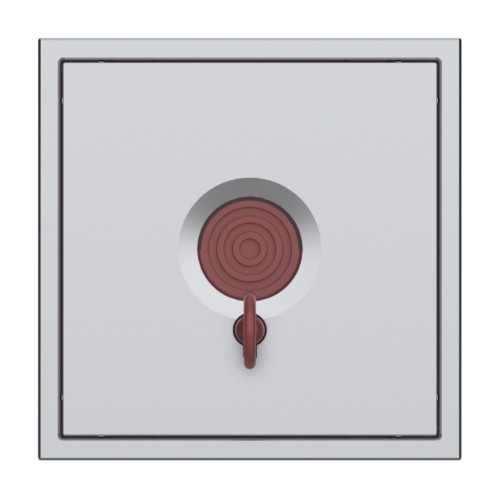

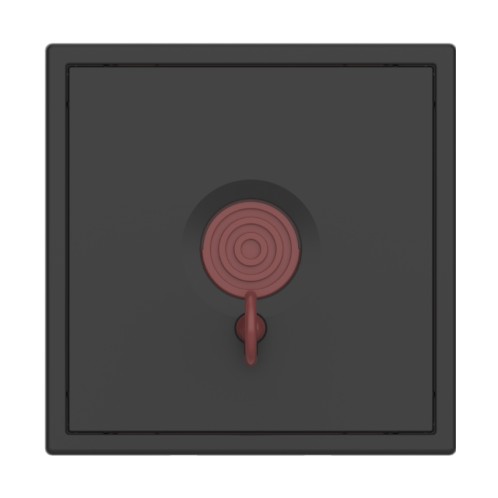

model:HDL-MP1-E-A/TILE.48

Tile emergency panel can be used in homes, schools, hospitals, nursing homes, shopping malls, parks, etc. In the case of emergency, press the button to show warnings or to call for help.

Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel
Tile emergency panel

Tile emergency panel can be used in homes, schools, hospitals, nursing homes, shopping malls, parks, etc. In the case of emergency, press the button to show warnings or to call for help.

■ To show alarms or call for help.
■ Insert the key to cancel alarms and reset the emergency button.


Basic Parameters
Rated voltage AC250V~, 50/60Hz

Rated current 3A


External Environment
Working temperature ≤35℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions
86×86×32.5(mm) (With plastic frame)
90×90×32.5(mm) (With metal frame)
Net weight
92g (With plastic frame)
125g (With metal frame)
Housing material Flame retardant PC
Installation Wall box
Protection rating (Compliant with EN 60529) IP40
