HDL-BUS and KNX-EIB Interface Converter
HDL-BUS and KNX-EIB Interface Converter
HDL-BUS and KNX-EIB Interface Converter

HDL-BUS and KNX-EIB Interface Converter

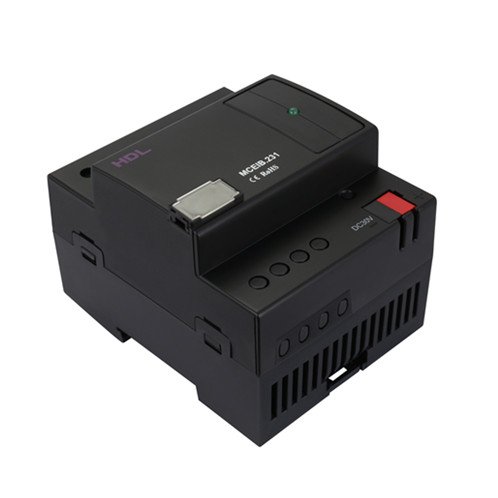

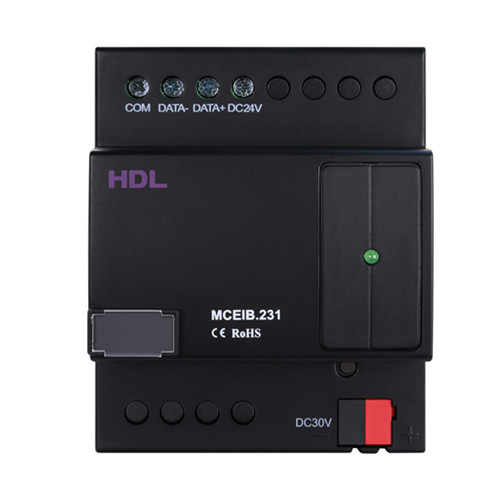

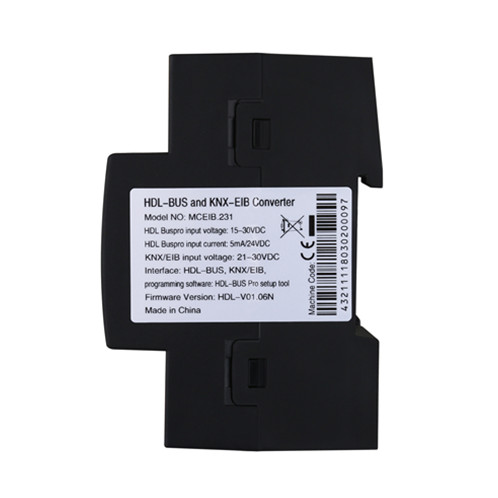

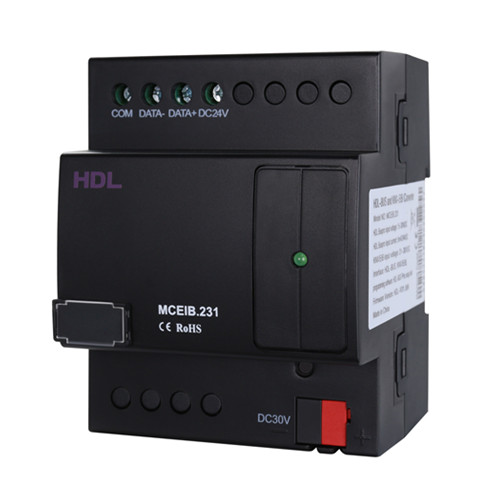

model:HDL-MCEIB.231

HDL-MCEIB.231 HDL-BUS and KNX-EIB Interface Converter is a gateway between HDL Buspro and KNX/EIB.

HDL-BUS and KNX-EIB Interface Converter
HDL-BUS and KNX-EIB Interface Converter
HDL-BUS and KNX-EIB Interface Converter

HDL-MCEIB.231 HDL-BUS and KNX-EIB Interface Converter is a gateway between HDL Buspro and KNX/EIB.

■ Two-way communication for HDL Buspro and KNX/EIB.
■ Various data point format supported.
■ Controls up to 254 targets

Basic Parameters
HDL Buspro working voltage 15~30V DC
HDL Buspro working current 5mA/24V DC
KNX/EIB working voltage 21~30V DC
KNX/EIB working current 6mA/30V DC
Communication HDL Buspro, KNX/EIB

Software programming HDL Buspro Setup Tool


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 72mm×90mm×64mm
Net weight 174g
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20



HDL-MCEIB231  HDL-BUS and KNX-EIB Interface Converter (Buspro)  HDL0.001.239-EN.pdf
