model:MSPU03-BRF.10

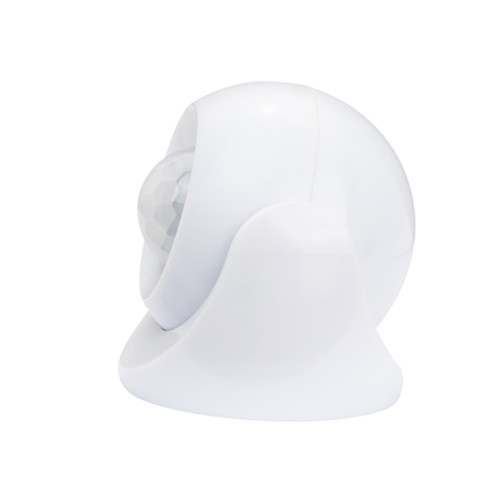

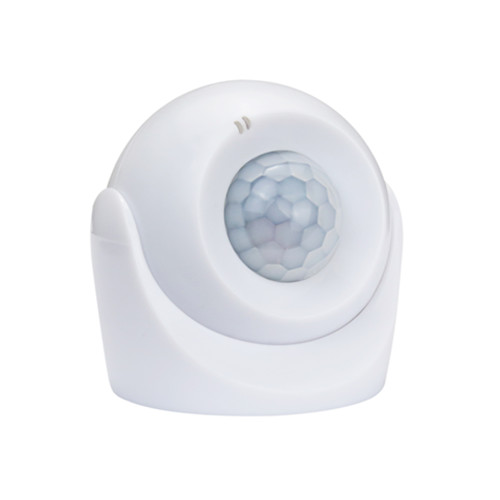

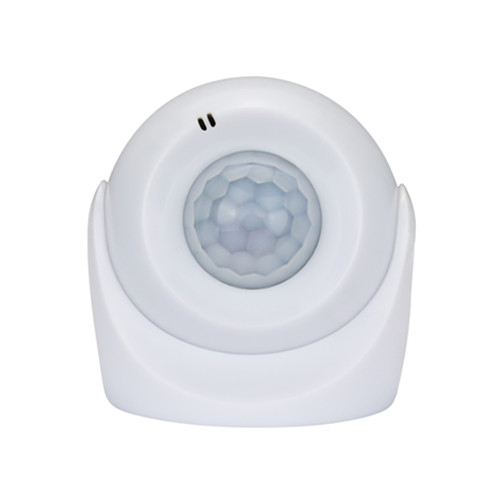

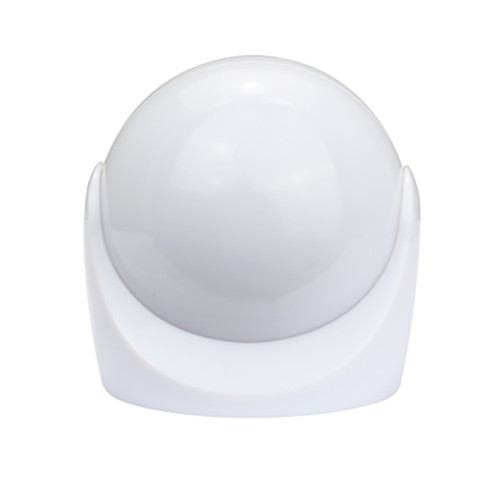

HDL-MSPU03.BRF.10 Wireless PIR sensor, customer can use it to detect the movement, and then, trigger the target.It uses HDL Buspro wireless communication, just need to use HDL Buspro software to configure

Buspro Wireless PIR sensor
Buspro Wireless PIR sensor
Buspro Wireless PIR sensor
Buspro Wireless PIR sensor
Buspro Wireless PIR sensor

HDL-MSPU03.BRF.10 Wireless PIR sensor, customer can use it to detect the movement, and then, trigger the target.It uses HDL Buspro wireless communication, just need to use HDL Buspro software to configure


■ Build in PIR sensor, LUX sensor, Temperature sensor

■ LUX detection: detect current brightness

■ Temperature detection: detect current temperature

■ Battery energy detection: detect current battery energy

■ Broadcast function: can broadcast its status, such as:movement, brightness, temperature, battery energy, you can select from the configuration.

■ Target type: invalid, scene, sequence, universal switch,single channel lighting control, curtain switch, GPRS control, broadcast scene, broadcast channel, security, zaudiocontrol.

■ Can adjust the detection range.

■ Supports IEEE.802.15.4

■ Supports online upgrading

■ Supports easy programming


Electrical Parameters:

Working voltage 3V 1400mAh (From battery)

Working current 21mA

Standby current 24μA

Indoor communication distance <=30m<>

RSSI Received Signal Strength

Indication

>-80dbm


Frequency allocation:

(China) WPAN 780-786MHz

(Europe) SRD 864-870MHz

(North America) ISM 904-928MHz

Default password HDL-SecurityKey0

Environmental Conditions:

Working temperature 0℃~36℃

Working relative humidity <90%<>

Storage temperature -20℃~+60℃

Storage relative humidity <93%<>


Approved

CE

RoHS


Product Information:

Dimension 54x54x51.5(mm)

Net weight 125g

Housing material PC

Installation

Ceiling mounted, screw or fix by

double faced adhesive tape

Protection rating IP20

Battery Panasonic CR123A
