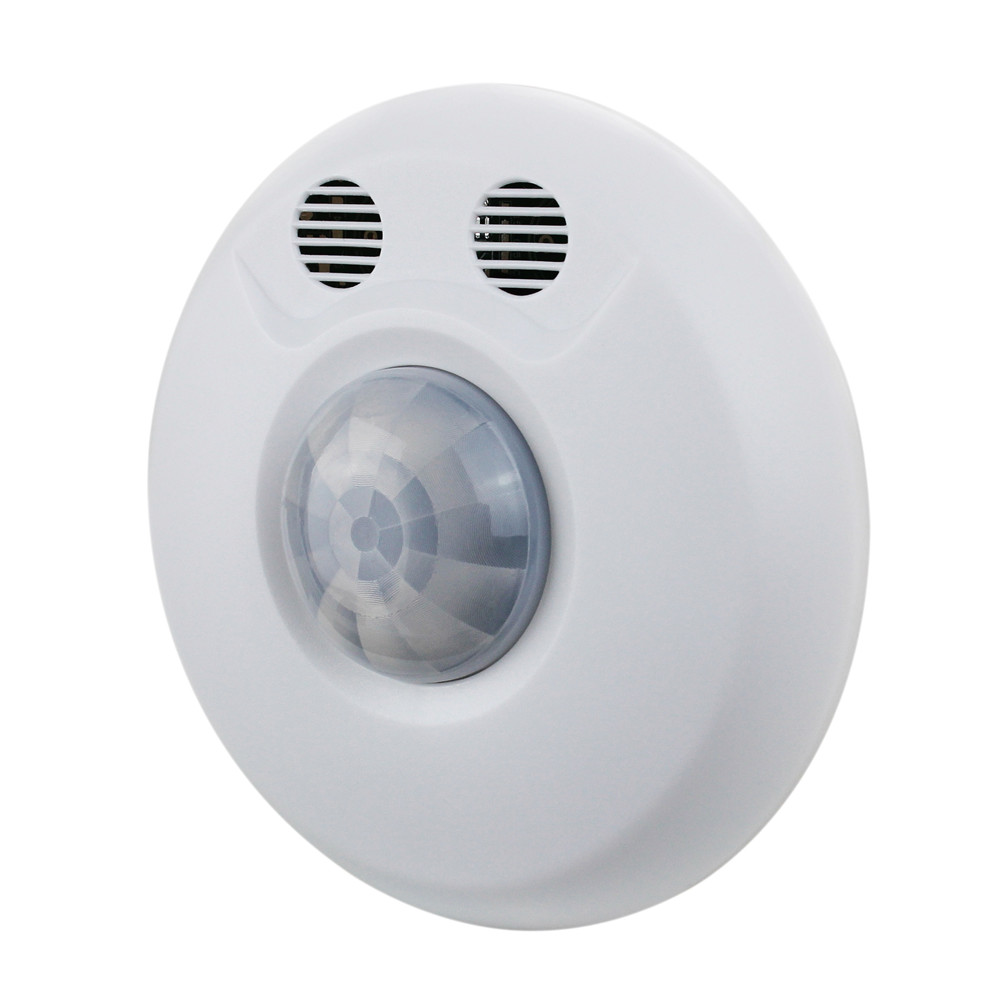

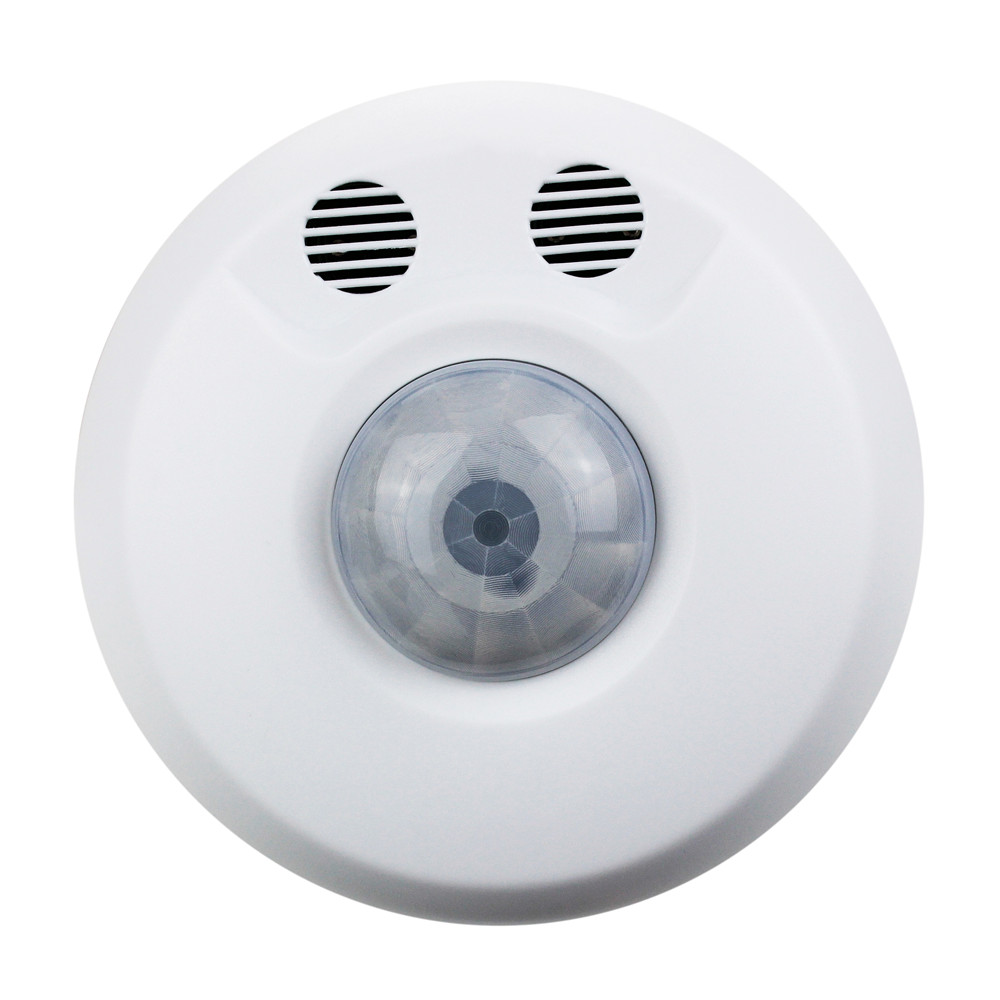

Wireless Ceiling Mount Ultrasonic & PIR Sensor
Wireless Ceiling Mount Ultrasonic & PIR Sensor
Wireless Ceiling Mount Ultrasonic & PIR Sensor
Wireless Ceiling Mount Ultrasonic & PIR Sensor

Wireless Ceiling Mount Ultrasonic & PIR Sensor

model:MSPU05-RF.1C

Wireless Ceiling Mount Ultrasonic & PIR Sensor contains logic conditions such as luminance sensor, universal switch, etc. The internal logic combines different logic functions such as luminance sensor, ultrasonic sensor, and universal switch, etc. to meet complex control needs.

Wireless Ceiling Mount Ultrasonic & PIR Sensor
Wireless Ceiling Mount Ultrasonic & PIR Sensor
Wireless Ceiling Mount Ultrasonic & PIR Sensor
Wireless Ceiling Mount Ultrasonic & PIR Sensor

Wireless Ceiling Mount Ultrasonic & PIR Sensor contains logic conditions such as luminance sensor, universal switch, etc. The internal logic combines different logic functions such as luminance sensor, ultrasonic sensor, and universal switch, etc. to meet complex control needs.


■ Supports 1 channel 5A relay output;

■ Real-time status review;

■ 8 logic conditions including PIR sensor, luminance sensor, ultrasonic sensor, manual button, ultrasonic, universal switch, etc.

■ Adjustable PIR sensor sensitivity range from 1 to 100;

■ Adjustable ultrasonic sensor sensitivity range from 1 to100;

■ 24 logic blocks, each of which can be set to 20 target outputs no matter the logic block is true or false;

■ Target types: scene switch, sequence switch, universal switch, single channel adjustment, broadcast scene or channel, curtain switch, GPRS control, panel control, music control;

■ 2 logical relationships: OR, AND;

■ Security protection (security module required);

■ Supports online upgrade.


Basic Parameters

Input voltage AC100-240V (50/60Hz)

Working current 5mA/220V AC

Relay output 5A

Brightness detection range 0~300LUX

PIR detection range in diameter 7m (Installation height: 3m)

Ultrasonic detection range in diameter 5m (Installation height: 3m)

Communication Buspro Wireless

Wireless transmission power +10dbm

Wireless sensitivity -90dbm

Indoor communication distance ≤30m

RSSI (Received Signal Strength Indication)

>-80dbm


Frequency Allocation

WPAN (China) 780 to 786MHz

SRD (Europe) 864 to 870MHz

ISM (North America) 904 to 928MHz

Default PSK HDL-SecurityKey0

External Environment

Working temperature -5℃~45℃

Working relative humidity ≤90%

Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications

Dimensions Φ95x38(mm)

Net weight 280g

Housing material ABS

Installation Ceiling mount

Protection rating

(Compliant with EN 60529)

IP20
