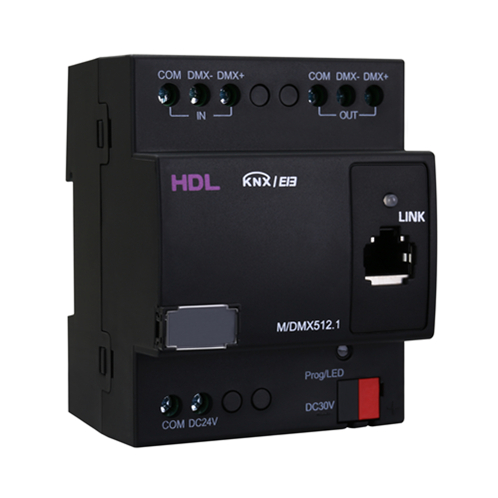

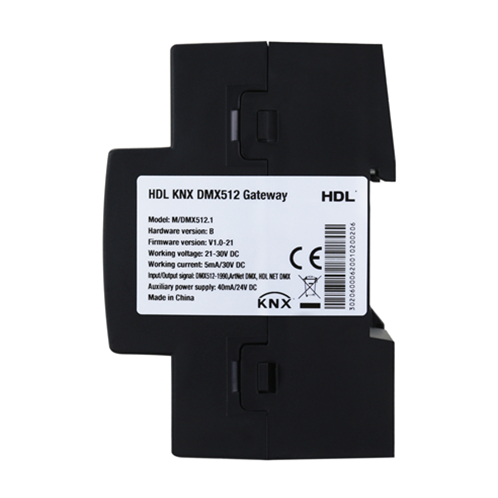

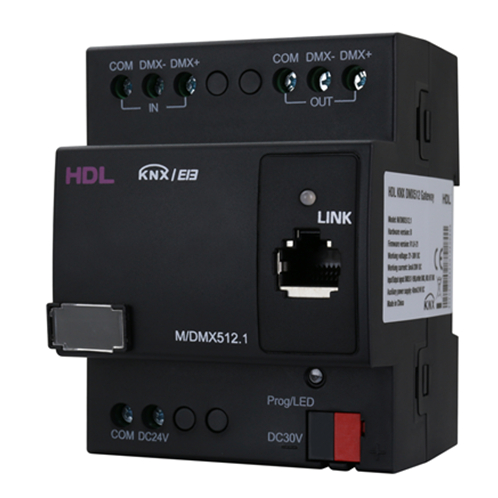

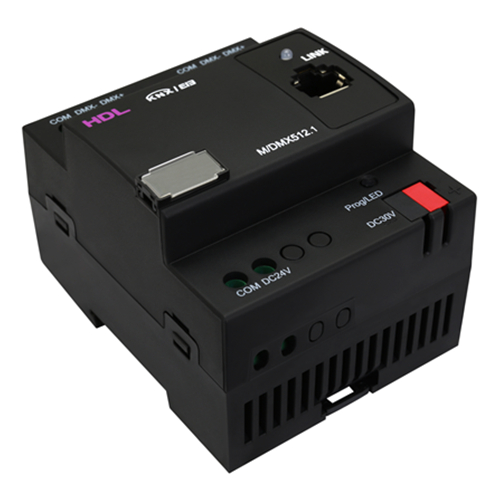

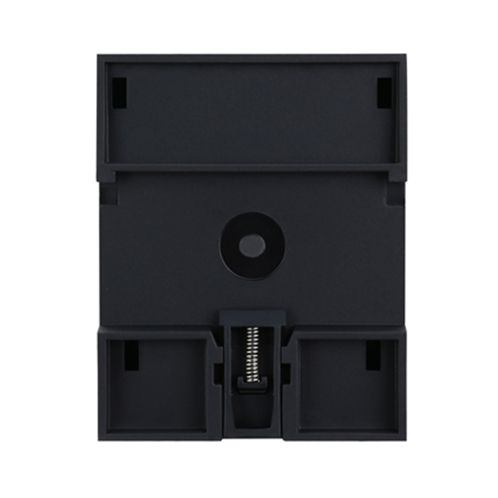

model:M/DMX512.1

DMX512 Gateway belongs to HDL KNX/EIB series. The gateway supports two-way control, and can record, play and delete DMX programs. With recording time up to 4 hours, DMX512 Gateway can be widely used to control devices with built-in DMX protocol port for LED color control, for example, computer light, moving head light, laser light, etc.

DMX512 Gateway
DMX512 Gateway
DMX512 Gateway
DMX512 Gateway
DMX512 Gateway
DMX512 Gateway
DMX512 Gateway
DMX512 Gateway

DMX512 Gateway belongs to HDL KNX/EIB series. The gateway supports two-way control, and can record, play and delete DMX programs. With recording time up to 4 hours, DMX512 Gateway can be widely used to control devices with built-in DMX protocol port for LED color control, for example, computer light, moving head light, laser light, etc.

■ 3 working modes: DMX recorder mode, DMX dimming mode ( EIB to DMX) and DMX to EIB conversion mode (1bit, 1byte data point) .
■ Supported communication signal: DMX512-1990, ArtNet DMX, HDL NET DMX.
■ Store and playback up to 24 programs, with up to 4 hours recording time.
■ DMX dimming mode supports switching or dimming for up to 48 channels (controlling DMX device via KNX system available).
■ DMX to EIB conversion mode supports switching or absolute dimming for up to 48 channels (controlling KNX system via DMX signal available).
■ DMX output signal can be used to control devices with DMX protocol port for LED color control, for example, moving head light, laser light, etc.
■ DMX input control functions include: Sequence control, Scene control, Switch control, Relative dimming, Absolute dimming.


Basic Parameters
Working voltage 21~30V DC
Working current 5mA/30V DC
Communication KNX/EIB
Auxiliary power supply 40mA/24V DC
Cable diameter of KNX terminal 0.6 - 0.8mm
Input / Output signal DMX512-1990, ArtNet DMX, HDL NET DMX

Terminals used for Line In/ Line Out 1~2.5mm2 cable


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 72mm×90mm×64mm
Net weight 189g
Housing material Nylon
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
