KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module

KNX 8-Zone Dry Contact Module

model:M/S08.1

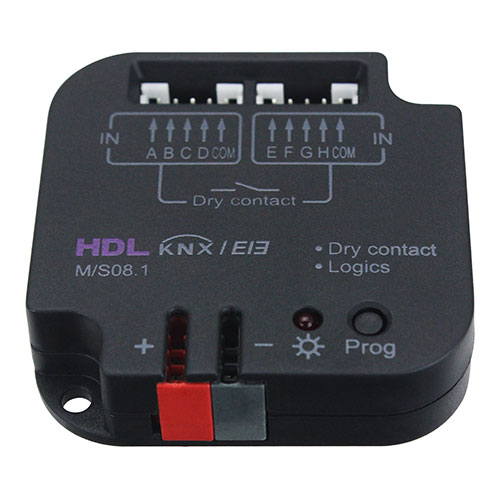

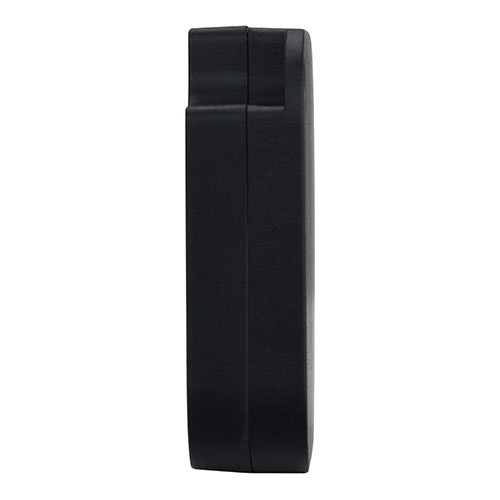

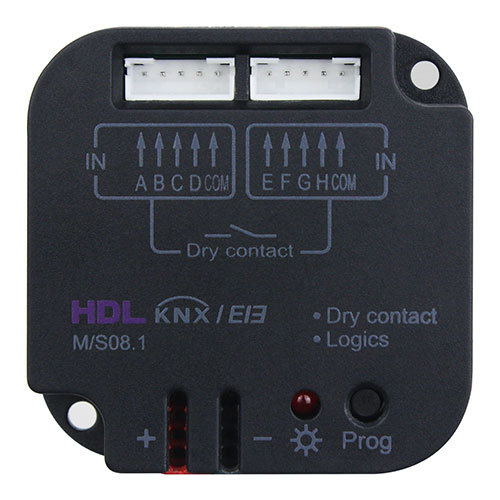

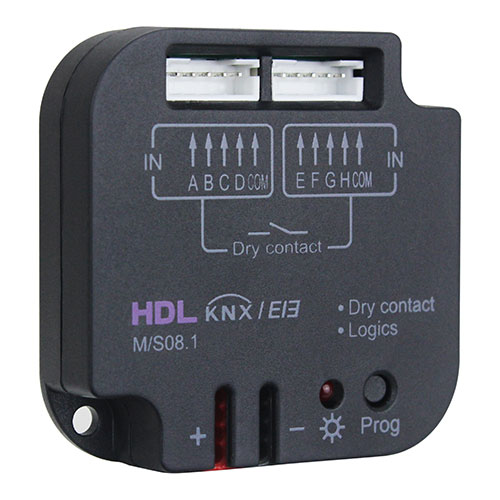

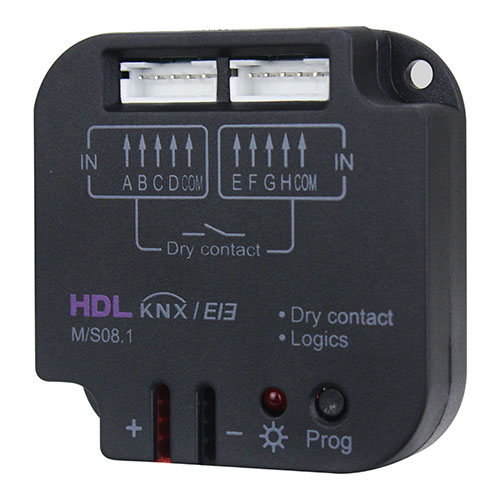

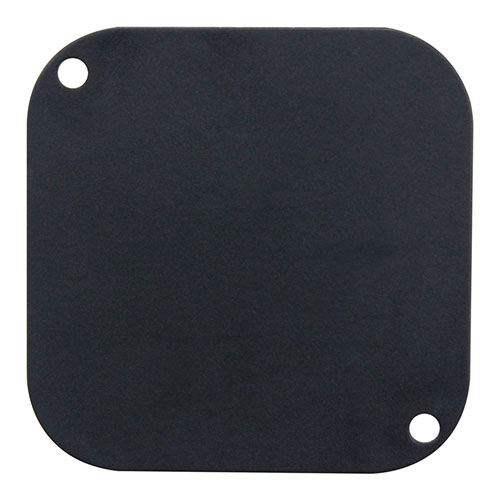

KNX 8-Zone Dry Contact Module belongs to HDL KNX/EIB series. It has 8-channel dry contact input and supports 2 control modes, including dry contact input control and logic control.

KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module
KNX 8-Zone Dry Contact Module

KNX 8-Zone Dry Contact Module belongs to HDL KNX/EIB series. It has 8-channel dry contact input and supports 2 control modes, including dry contact input control and logic control.

Dry contact input:
■ 8-channel dry contact input supported
■ Control types: Switch control, Switch/Dimming control, Shutter control, Flexible control, Scene control, Sequence control, Percentage control, Threshold control, String(14 bytes) control, Forced control, Counter control, Bell control, Combination control.


Logic control:
■ Any 8 inputs can be combined with several different types of external telegram (for example, 1 bit Boolean variable, 1~4 byte threshold, time, date, etc.) to perform AND/OR/NOT logical operations.
■ Level 1-4 logic controls can be set, and lower-level logic can be used as the logic input conditions for higher-level.
■ The module has 18 logic blocks, which can lock channel input, enable logical operations and force immediate output even if the output is set to delay. Each logic block can report the logical state in a variety of ways.
■ The module has 10 logic output blocks, which can be associated with any logical result output. Each logic block can independently control 8 targets, and delay can be set, repeated telegrams can be sent and each target can be independently controlled, for example: Switch control, Absolute dimming control, Alarm control, Shutter control, Flexible control, Sequence control, Percentage control, Threshold control, String(14 bytes) control etc.


Basic Parameters
Working voltage 21~30V DC
Working current 5mA/30V DC
Communication KNX/EIB

Cable diameter of KNX terminal 0.6 - 0.8mm


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 50mm×50mm×13mm
Net weight 24g
Housing material Flame-retardant ABS
Installation Switch box installation
Protection rating (Compliant with EN 60529) IP20


M_S08.1  KNX 8-Zone Dry Contact Module (Hardware Version:A) HDL0.001.522-EN.pdf
